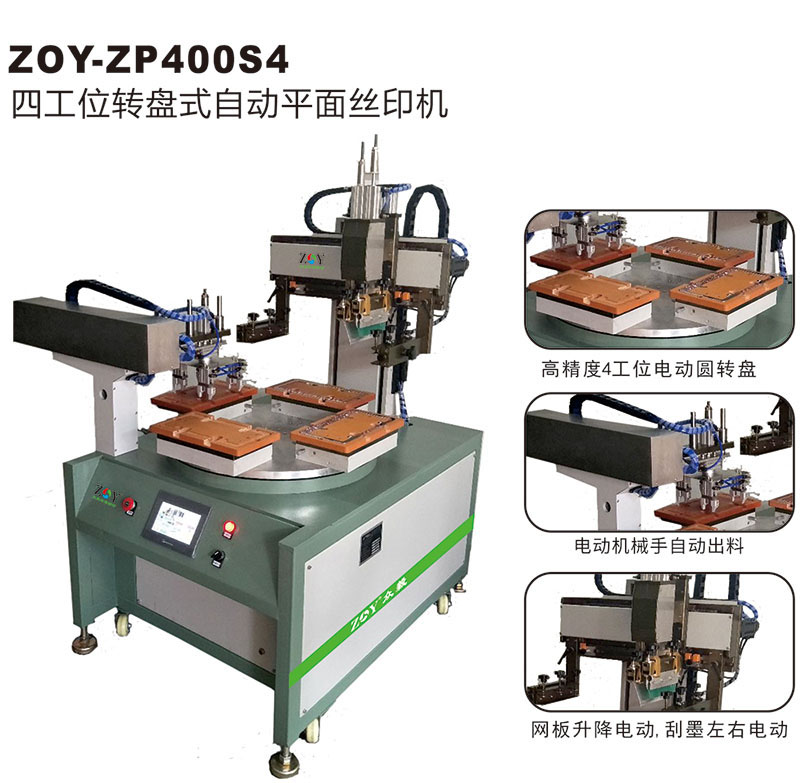

| Custom chassis base for heavy industrial use | High precision 4-station electric turntable | Fast, accurate, labor saving to increase production |
| Servo drive + double guide rail + motor drive | PLC man-machine control interface | Precision bearings and guide rails |
| Automatic discharge by electric manipulator | Net board lifting electric, scraping about electric |
| Turntable size (diameter) | 900mm | Air pressure | 6-8Bar |
| Maximum printing area | 200*300mm | Power supply | 110/220V |
| speed | 1000pcs/H | Accuracy +/- | 0.03mm |
| Left and right travel | 400mm | weight | 500kg |
| Up and down stroke | 350mm | Size (L * W * H) | 2500*900*1500mm |
