| Oil basin size (diameter) | 100*250mm&150*300mm 11 |
The diameter of the drop air cylinder on the glue head | 80mm | |
| Printing size | 100*250mm&150*300mm | Current supply | 110/220V | |
| velocity | 6-8 seconds/cycle | Accuracy +/- | 0.035mm | |
| Glue head pressure | 800N | Size(L * W * H) | 850*900*1600mm | |
| weight | 220kg | Pusher travel | 600mm |

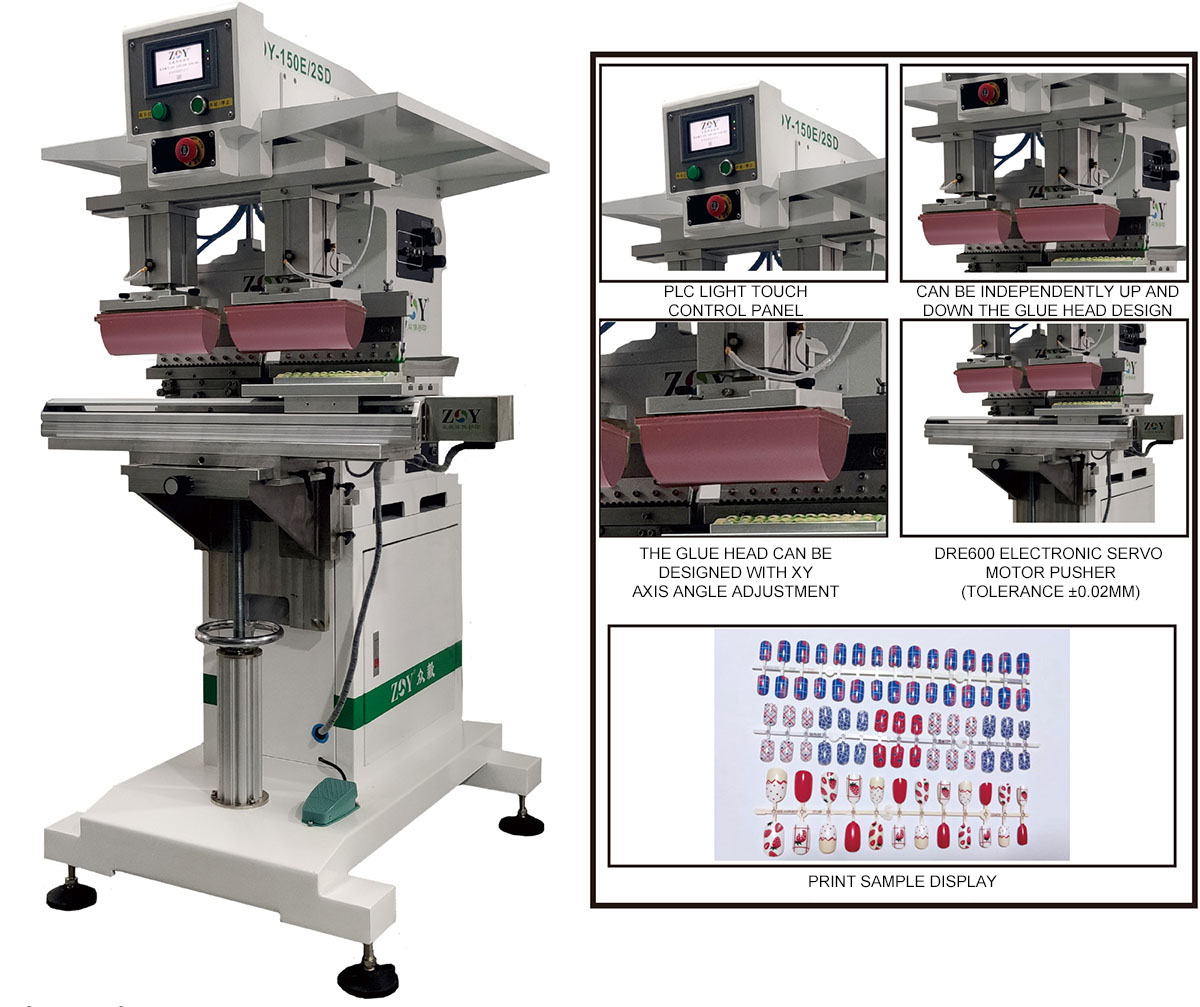

Alloy cast aluminum, the most competitive in the similar market
Horizontal open oil basin
Independent up and down system
Easy to adjust printing position
PLC numerical control
Servo module push around
Printing delay
The rubber head can be adjusted by XY Angle
Precision bearings and guide rails
